What Are the Key Differences Between PZ30 and Other Distribution Boxes
2026-10-14
When selecting an electrical distribution solution for residential, commercial, or light industrial applications, understanding the distinctions between available options is essential. The PZ30 Distribution Box has become a widely recognized standard in many markets, particularly across Asia and the Middle East, while other distribution boxes such as modular consumer units, MCCBs, and custom-built panels serve different purposes. At Junray, we manufacture and supply a full range of distribution boxes designed to meet diverse project requirements. This article breaks down the key technical and practical differences to help engineers, contractors, and buyers make informed decisions.
What Makes the PZ30 Distribution Box Distinct?

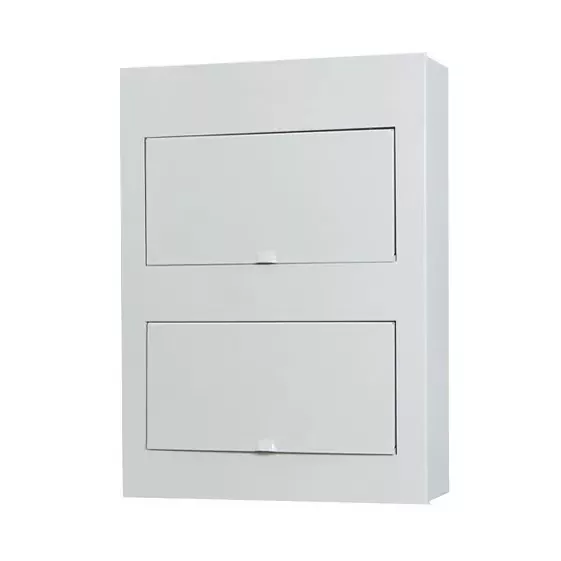

The PZ30 Distribution Box is a modular, surface-mounted or flush-mounted enclosure designed primarily for DIN-rail mounted circuit breakers and related protection devices. Its defining characteristic is a standardized modular structure that allows flexible configuration of single-pole, double-pole, and three-pole breakers within a compact footprint.
Other distribution boxes vary significantly in design philosophy:
-
Modular Consumer Units (European Style): Similar in function but often comply with IEC 61439 and feature different rail spacing and cover designs.
-
MCCB Distribution Boxes: Built for higher current ratings, typically using molded case circuit breakers rather than modular MCBs.
-
Custom Sheet Metal Panels: Fabricated for specific industrial control or power distribution needs, often with non-standard dimensions.
-
Weatherproof Distribution Boxes: Designed for outdoor use with IP65 or higher protection ratings.
Key Differences at a Glance
| Feature | PZ30 Distribution Box | Modular Consumer Unit | MCCB Box | Custom Panel |
|---|---|---|---|---|
| Primary Application | Residential & light commercial | Residential (EU standard) | Industrial power distribution | Industrial control |
| Breaker Type | Modular MCB, RCD, RCBO | Modular MCB, RCD | MCCB, ACB | Various |
| Standard Compliance | GB/T, IEC 61439 (varies) | IEC 61439, BS EN 61439 | IEC 60947 | Project-specific |
| Mounting | Surface / flush | Surface / flush | Wall / floor | Floor / wall |
| Current Rating | Up to 125A typical | Up to 125A | 100A–1600A+ | Custom |
| Protection Rating | IP30–IP40 typical | IP30–IP40 | IP30–IP65 | IP20–IP66 |
| Modular Flexibility | High | High | Medium | Low |
| Cost Level | Economical | Moderate | High | Variable |
Structural and Material Differences
The PZ30 Distribution Box is typically manufactured from cold-rolled steel or high-grade engineering plastic, with a powder-coated finish for corrosion resistance. Its internal DIN rail is positioned to accommodate standard 18mm modular devices. In contrast, MCCB boxes require larger busbar systems and reinforced mounting plates to handle higher fault currents. Custom panels often use thicker gauge steel and may include cable glands, ventilation, and thermal management systems.
Junray produces PZ30 Distribution Box enclosures that undergo rigorous dimensional checks and material verification to ensure compatibility with mainstream breaker brands and long-term durability in varied environments.
Installation and Maintenance Considerations
-
PZ30: Simple wall mounting, front access, easy breaker replacement, minimal wiring space.
-
Consumer Units: Similar installation but may require different cable entry configurations.
-
MCCB Boxes: Heavier, require careful torque settings, and often need rear or side cable entry.
-
Custom Panels: Installation is project-specific, often requiring detailed schematics and skilled labor.
PZ30 Distribution Box FAQ
Q: What is the maximum number of modules a PZ30 Distribution Box can accommodate?
A: Standard PZ30 Distribution Box models typically support 4 to 36 modules, with 12, 18, 24, and 36-way versions being the most common. The exact capacity depends on the enclosure size and whether single or double rows are used.
Q: Can a PZ30 Distribution Box be used outdoors?
A: A standard PZ30 Distribution Box is designed for indoor use with IP30–IP40 protection. For outdoor applications, a weatherproof enclosure or an additional protective cabinet with IP65 rating is recommended to prevent water and dust ingress.
Q: Is the PZ30 Distribution Box compatible with international circuit breakers?
A: Yes, most PZ30 Distribution Box models feature standard 35mm DIN rails and 18mm module spacing, making them compatible with IEC-standard MCBs, RCDs, and RCBOs from major international brands, provided the breaker dimensions and terminal clearances are respected.
Why Choose Junray for Your Distribution Box Needs?
Junray combines manufacturing expertise with strict quality control to deliver PZ30 Distribution Box solutions that meet real-world demands. From material selection to final assembly, every unit is designed for safety, compatibility, and ease of installation. Our team supports OEM and ODM projects, offering customized configurations, branding, and packaging.
For more information, technical drawings, or a quotation, contact us today and let Junray power your next project with reliable distribution box solutions.
